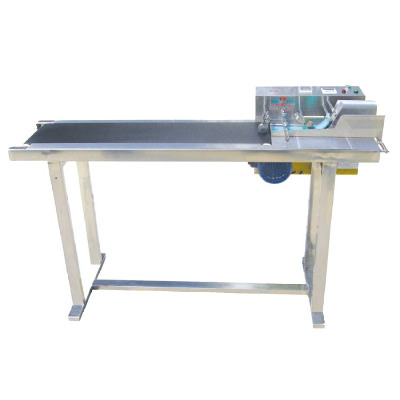

Imported high precision frequency conversion stepless speed regulation, high speed automatic paging 0--80m/min, can greatly improve production efficiency.
High precision of positioning: automatic counting, also can set their own paging number of automatic shutdown, set the range 1-9999 (need and inkjet printer, laser machine signal sharing), can reduce rework probability. The structure design is reasonable, the replacement of wearing parts is simple and quick, and can reduce the maintenance cost.
Optional accessories: automatic material receiving device, paging machine separate counting down signal source.
Mainly used in pharmaceutical, food, printing and other industries, the design to the product type is automatic pagination paper, business cards, labels, all kinds of material of the card, phone card, IC card, IP card, game Chongzhi cards, plastic composite packaging bags, cartons, paper bags etc. all kinds of various thickness material sheet items, to a whole stack of sheet items high-speed separation into independent pieces, and through the conveyor belt out for inkjet printing one by one.
Technical parameter:
Dynamic paging speed: 60 ~ 500 parts per meter
Rated voltage: 220V/50Hz
Power of the whole machine: 180W
Weight: 50Kg
Exterior size: 1340 x 580 x 950 (mm) (long X wide X high)
Scope of application: length 65-400 (mm) adjustable, adjustable thickness 0.2, width 70-280 (mm) adjustable
Feed size: long, 400 mm, width 340mm
Shipping material size: long: 890 mm, wide 340mm, belt width 260mm
Separated object size: long 65-400mm wide 70-280mm thick 0.2mm
